Grid & GridRow

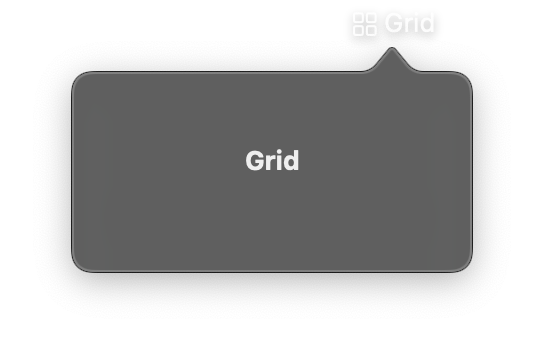

Grid

Grid arranges views in a fixed two-dimensional layout with explicit row and column structure. Unlike LazyVGrid and LazyHGrid, Grid sizes all views immediately rather than lazily.

Use GridRow to define individual rows within the grid. The number of columns is determined by the row with the most children.

Constructor¶

nib.Grid(
    controls=None,
    alignment=None,
    horizontal_spacing=None,
    vertical_spacing=None,
    **modifiers,
)

nib.GridRow(
    controls=None,
    alignment=None,
    **modifiers,
)

Parameters¶

Grid¶

Parameter	Type	Default	Description
`controls`	`list[View]`	`None`	Child views, typically `GridRow` elements that define the grid structure.
`alignment`	`str`	`None`	Default alignment for all cells in the grid.
`horizontal_spacing`	`float`	`None`	Spacing in points between columns.
`vertical_spacing`	`float`	`None`	Spacing in points between rows.
`**modifiers`			Common view modifiers: `padding`, `background`, `width`, `height`, etc.

GridRow¶

Parameter	Type	Default	Description
`controls`	`list[View]`	`None`	Views in this row. Each view occupies one column.
`alignment`	`str`	`None`	Vertical alignment for this specific row, overriding the grid default.
`**modifiers`			Common view modifiers.

Mutable Properties¶

Property	Type	Description
`controls`	`list[View]`	Get or set the child views (on both Grid and GridRow). Setting triggers a UI update.

Examples¶

Simple 2x2 grid¶

import nib

def main(app: nib.App):
    app.build(
        nib.Grid(
            controls=[
                nib.GridRow(controls=[
                    nib.Text("A", padding=8),
                    nib.Text("B", padding=8),
                ]),
                nib.GridRow(controls=[
                    nib.Text("C", padding=8),
                    nib.Text("D", padding=8),
                ]),
            ],
            horizontal_spacing=10,
            vertical_spacing=10,
            padding=16,
        )
    )

nib.run(main)

Label-value grid¶

Grid works well for creating aligned label-value pairs.

import nib

def main(app: nib.App):
    app.build(
        nib.Grid(
            controls=[
                nib.GridRow(
                    controls=[
                        nib.Text("Name:", foreground_color=nib.Color.SECONDARY),
                        nib.Text("Nib Framework"),
                    ],
                    alignment="center",
                ),
                nib.GridRow(
                    controls=[
                        nib.Text("Version:", foreground_color=nib.Color.SECONDARY),
                        nib.Text("1.0.0"),
                    ],
                    alignment="center",
                ),
                nib.GridRow(
                    controls=[
                        nib.Text("Platform:", foreground_color=nib.Color.SECONDARY),
                        nib.Text("macOS"),
                    ],
                    alignment="center",
                ),
            ],
            horizontal_spacing=16,
            vertical_spacing=8,
            padding=16,
        )
    )

nib.run(main)

Grid with mixed content¶

import nib

def main(app: nib.App):
    app.build(
        nib.Grid(
            controls=[
                nib.GridRow(controls=[
                    nib.Image(system_name="star.fill"),
                    nib.Text("Favorites"),
                    nib.Text("12"),
                ]),
                nib.GridRow(controls=[
                    nib.Image(system_name="clock.fill"),
                    nib.Text("Recent"),
                    nib.Text("5"),
                ]),
                nib.GridRow(controls=[
                    nib.Image(system_name="folder.fill"),
                    nib.Text("Documents"),
                    nib.Text("34"),
                ]),
            ],
            horizontal_spacing=12,
            vertical_spacing=8,
            padding=16,
        )
    )

nib.run(main)
