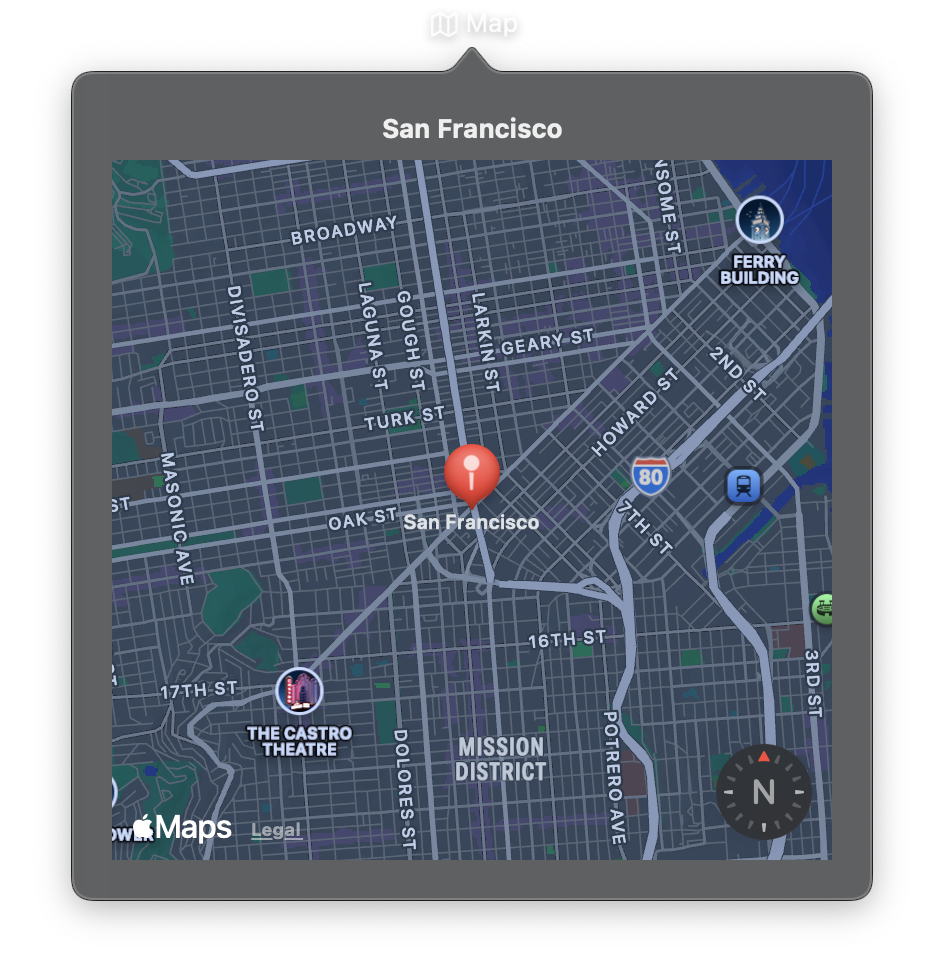

Map control

An interactive map view powered by MapKit. Map supports markers, custom annotations with arbitrary views, circle overlays, polylines, polygons, multiple map styles, and user location display. The center coordinates and zoom level are reactive.

Constructor

nib.Map(
    latitude=0.0,
    longitude=0.0,
    zoom=0.1,
    markers=None,
    annotations=None,
    circles=None,
    polylines=None,
    polygons=None,
    style=None,
    elevation=None,
    shows_traffic=False,
    shows_compass=False,
    shows_scale=False,
    shows_user_location=False,
    interaction_modes=None,
    on_region_change=None,
    **modifiers,
)

Parameters

Parameter Type Default Description
latitude float 0.0 Center latitude coordinate (-90 to 90).
longitude float 0.0 Center longitude coordinate (-180 to 180).
zoom float 0.1 Zoom level as coordinate span in degrees. Smaller values zoom in more. Use 0.01 for a neighborhood, 0.1 for a city, 1.0 for a country.
markers list[MapMarker] None List of MapMarker objects to display as pins.
annotations list[MapAnnotation] None List of MapAnnotation objects for custom view content at coordinates.
circles list[MapCircle] None List of MapCircle overlays.
polylines list[MapPolyline] None List of MapPolyline line paths.
polygons list[MapPolygon] None List of MapPolygon filled areas.
style MapStyle \| str None Map style. Options: MapStyle.STANDARD, MapStyle.SATELLITE, MapStyle.HYBRID, MapStyle.IMAGERY.
elevation str None Elevation style. Options: "flat", "realistic" (3D terrain).
shows_traffic bool False Whether to show traffic conditions overlay.
shows_compass bool False Whether to show the compass control.
shows_scale bool False Whether to show the scale indicator.
shows_user_location bool False Whether to show the user's current location.
interaction_modes list[MapInteractionMode \| str] None Allowed interactions. If None, all are enabled. Options: "pan", "zoom", "rotate", "pitch", "all".
on_region_change Callable[[float, float, float], None] None Callback when the visible region changes. Receives (latitude, longitude, zoom).
**modifiers Common view modifiers: width, height, corner_radius, padding, etc.

Mutable Properties

Property Type Description
latitude float Get or set the center latitude. Triggers a UI update.
longitude float Get or set the center longitude. Triggers a UI update.
zoom float Get or set the zoom level. Triggers a UI update.
markers list[MapMarker] Get or set the markers. Triggers a UI update.

Methods

Method Description
add_marker(marker) Add a single MapMarker to the map.
clear_markers() Remove all markers from the map.

Helper Classes

MapMarker

A pin marker displayed at specific coordinates.

nib.MapMarker(
    latitude,
    longitude,
    title=None,
    subtitle=None,
    tint=None,
    system_image=None,
)
Parameter Type Default Description
latitude float (required) Latitude coordinate.
longitude float (required) Longitude coordinate.
title str None Title displayed with the marker.
subtitle str None Subtitle displayed below the title.
tint Color \| str None Tint color for the marker.
system_image str None SF Symbol name for a custom marker icon.

MapAnnotation

A custom view displayed at specific coordinates.

nib.MapAnnotation(
    latitude,
    longitude,
    content,
    anchor="bottom",
)
Parameter Type Default Description
latitude float (required) Latitude coordinate.
longitude float (required) Longitude coordinate.
content View (required) The view to display at this location.
anchor str "bottom" Anchor point. Options: "center", "bottom", "top".

MapCircle

A circular overlay on the map.

nib.MapCircle(
    latitude,
    longitude,
    radius,
    fill=None,
    stroke=None,
    stroke_width=None,
)
Parameter Type Default Description
latitude float (required) Center latitude.
longitude float (required) Center longitude.
radius float (required) Radius in meters.
fill Color \| str None Fill color.
stroke Color \| str None Stroke color.
stroke_width float None Stroke width.

MapPolyline

A line connecting multiple coordinates.

nib.MapPolyline(
    coordinates,
    stroke=None,
    stroke_width=None,
)
Parameter Type Default Description
coordinates list[tuple[float, float]] (required) List of (latitude, longitude) tuples.
stroke Color \| str None Stroke color.
stroke_width float None Line width.

MapPolygon

A filled polygon on the map.

nib.MapPolygon(
    coordinates,
    fill=None,
    stroke=None,
    stroke_width=None,
)
Parameter Type Default Description
coordinates list[tuple[float, float]] (required) List of (latitude, longitude) tuples defining vertices.
fill Color \| str None Fill color.
stroke Color \| str None Stroke color.
stroke_width float None Border width.

Examples

Map with markers

import nib

def main(app: nib.App):
    app.build(
        nib.Map(
            latitude=37.7749,
            longitude=-122.4194,
            zoom=0.05,
            markers=[
                nib.MapMarker(37.7749, -122.4194, title="San Francisco",
                               tint=nib.Color.RED),
                nib.MapMarker(37.8044, -122.2712, title="Oakland",
                               tint=nib.Color.BLUE),
            ],
            style=nib.MapStyle.STANDARD,
            shows_compass=True,
            width=400,
            height=300,
            corner_radius=12,
            padding=16,
        )
    )

nib.run(main)

Map with custom annotations

import nib

def main(app: nib.App):
    app.build(
        nib.Map(
            latitude=48.8566,
            longitude=2.3522,
            zoom=0.02,
            annotations=[
                nib.MapAnnotation(
                    latitude=48.8584,
                    longitude=2.2945,
                    content=nib.VStack(controls=[
                        nib.Image(system_name="star.fill",
                                   foreground_color=nib.Color.YELLOW),
                        nib.Text("Eiffel Tower", font=nib.Font.CAPTION),
                    ], padding=4, background=nib.Color.WHITE,
                       corner_radius=6),
                ),
            ],
            style=nib.MapStyle.HYBRID,
            width=400,
            height=300,
            corner_radius=12,
            padding=16,
        )
    )

nib.run(main)

Map with overlays

import nib

def main(app: nib.App):
    app.build(
        nib.Map(
            latitude=37.7749,
            longitude=-122.4194,
            zoom=0.05,
            circles=[
                nib.MapCircle(37.7749, -122.4194, radius=1000,
                               fill="#0000FF33", stroke=nib.Color.BLUE,
                               stroke_width=2),
            ],
            polylines=[
                nib.MapPolyline(
                    coordinates=[
                        (37.7749, -122.4194),
                        (37.8044, -122.2712),
                        (37.8716, -122.2727),
                    ],
                    stroke=nib.Color.RED,
                    stroke_width=3,
                ),
            ],
            width=400,
            height=300,
            padding=16,
        )
    )

nib.run(main)
