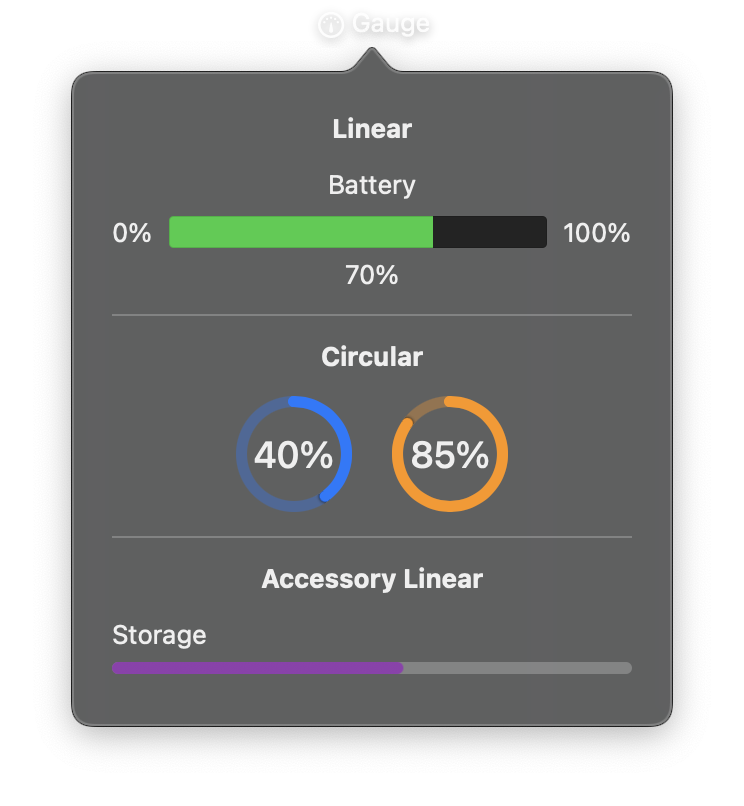

Gauge control

A view that displays a value within a bounded range, ideal for showing battery levels, CPU usage, memory consumption, or any bounded numeric measurement. Gauge supports multiple visual styles and accepts either strings or custom views for its labels.

Constructor

nib.Gauge(
    value=0.0,
    min_value=0.0,
    max_value=1.0,
    label=None,
    current_value_label=None,
    min_value_label=None,
    max_value_label=None,
    style=GaugeStyle.AUTOMATIC,
    tint=None,
    **modifiers,
)

Parameters

Parameter Type Default Description
value float 0.0 Current gauge value.
min_value float 0.0 Minimum value of the range.
max_value float 1.0 Maximum value of the range.
label str \| View None Label describing the gauge. Accepts a plain string or a custom View.
current_value_label str \| View None Label showing the current value. Accepts a plain string or a custom View.
min_value_label str \| View None Label for the minimum end of the range. Accepts a plain string or a custom View.
max_value_label str \| View None Label for the maximum end of the range. Accepts a plain string or a custom View.
style str GaugeStyle.AUTOMATIC Gauge style. Options: GaugeStyle.AUTOMATIC, GaugeStyle.LINEAR_CAPACITY, GaugeStyle.CIRCULAR_CAPACITY, GaugeStyle.ACCESSORY_LINEAR, GaugeStyle.ACCESSORY_LINEAR_CAPACITY, GaugeStyle.ACCESSORY_CIRCULAR, GaugeStyle.ACCESSORY_CIRCULAR_CAPACITY.
tint Color \| str None Tint color for the gauge fill. Accepts a Color enum or hex string.
**modifiers Common view modifiers: padding, background, opacity, width, height, etc.

Mutable Properties

Property Type Description
value float Get or set the current gauge value. Triggers a UI update.
label str \| View Get or set the gauge label.
current_value_label str \| View Get or set the current value label.
min_value_label str \| View Get or set the minimum value label.
max_value_label str \| View Get or set the maximum value label.
style str Get or set the gauge style.
tint Color \| str Get or set the tint color.

Examples

Simple battery gauge

import nib

def main(app: nib.App):
    app.build(
        nib.Gauge(
            value=0.75,
            label="Battery",
            current_value_label="75%",
            style=nib.GaugeStyle.LINEAR_CAPACITY,
            tint=nib.Color.GREEN,
            padding=16,
        )
    )

nib.run(main)

Circular gauge with view labels

import nib

def main(app: nib.App):
    cpu_usage = 62

    app.build(
        nib.Gauge(
            value=cpu_usage / 100,
            label=nib.Label("CPU", icon="cpu"),
            current_value_label=nib.Text(f"{cpu_usage}%",
                                          font=nib.Font.HEADLINE),
            min_value_label=nib.Image(system_name="tortoise"),
            max_value_label=nib.Image(system_name="hare"),
            style=nib.GaugeStyle.ACCESSORY_CIRCULAR,
            tint=nib.Color.BLUE,
            padding=16,
        )
    )

nib.run(main)

Download progress gauge

import nib

def main(app: nib.App):
    progress = 0.4

    app.build(
        nib.Gauge(
            value=progress,
            label="Download",
            current_value_label=f"{int(progress * 100)}%",
            min_value_label="0%",
            max_value_label="100%",
            style=nib.GaugeStyle.LINEAR_CAPACITY,
            tint=nib.Color.BLUE,
            padding=16,
            width=250,
        )
    )

nib.run(main)
