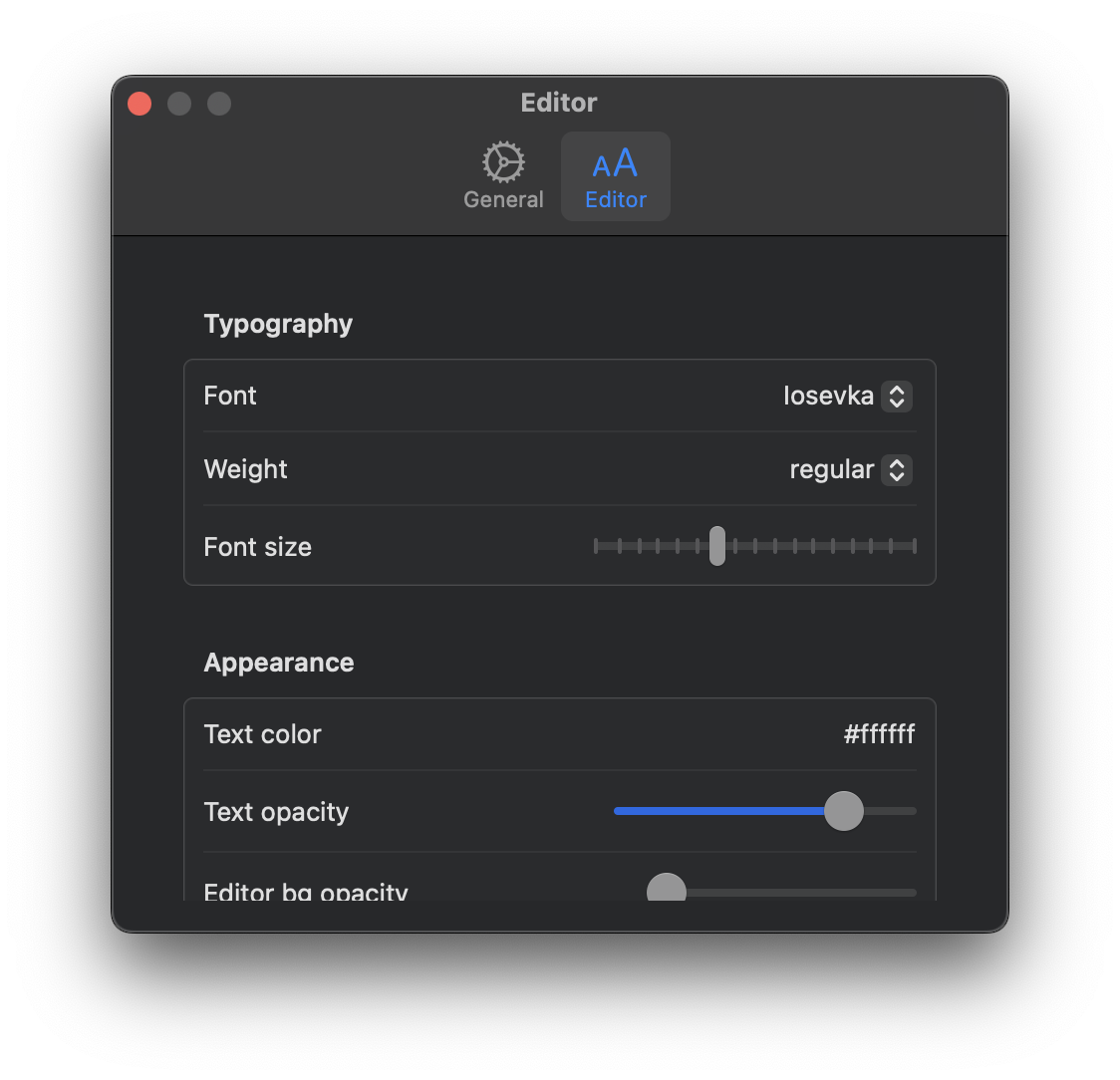

Components for creating tabbed preferences windows that follow macOS conventions. SettingsPage defines the window, and SettingsTab defines each tab within it. The settings window is accessible via Cmd+, (standard macOS shortcut) or programmatically via the open() method.
SettingsPage¶
Constructor¶
nib.SettingsPage(
tabs=None,
content=None,
width=450,
height=300,
title="Settings",
)
Parameters¶
| Parameter | Type | Default | Description |
|---|---|---|---|
tabs |
list[SettingsTab] \| None |
None |
List of SettingsTab objects for a tabbed interface |
content |
View \| None |
None |
Single view for a non-tabbed settings page. If provided without tabs, automatically wraps in a single "General" tab with a gear icon |
width |
float |
450 |
Window width in points |
height |
float |
300 |
Window height in points |
title |
str |
"Settings" |
Window title text |
Properties¶
| Property | Type | Description |
|---|---|---|
tabs |
list[SettingsTab] |
The list of tabs in the settings page |
content |
View \| None |
Single content view (if provided at construction) |
width |
float |
Window width |
height |
float |
Window height |
title |
str |
Window title |
Methods¶
open()¶
Open the settings window programmatically.
settings_page.open() -> None
close()¶
Close the settings window programmatically.
settings_page.close() -> None
SettingsTab¶
Constructor¶
nib.SettingsTab(title, icon=None, content=None)
Parameters¶
| Parameter | Type | Default | Description |
|---|---|---|---|
title |
str |
-- | The tab title displayed in the tab bar |
icon |
str \| None |
None |
SF Symbol name for the tab icon (e.g. "gear", "person", "bell") |
content |
View \| None |
None |
The view displayed when this tab is selected |
Properties¶
| Property | Type | Description |
|---|---|---|
title |
str |
Tab title text |
icon |
str \| None |
SF Symbol icon name |
content |
View \| None |
Tab content view |
Examples¶
Multi-tab settings page¶
import nib
def main(app: nib.App):
app.title = "My App"
app.icon = nib.SFSymbol("star.fill")
app.width = 300
app.height = 200
settings = nib.Settings({
"dark_mode": False,
"font_size": 14,
"notifications": True,
})
app.register_settings(settings)
app.settings = nib.SettingsPage(
width=500,
height=400,
tabs=[
nib.SettingsTab(
"General",
icon="gear",
content=nib.Form(
controls=[
nib.Toggle(
"Dark Mode",
is_on=settings.dark_mode,
on_change=lambda v: setattr(settings, "dark_mode", v),
),
nib.Slider(
"Font Size",
value=settings.font_size,
min_value=10,
max_value=24,
on_change=lambda v: settings.set("font_size", int(v)),
),
],
),
),
nib.SettingsTab(
"Notifications",
icon="bell",
content=nib.Form(
controls=[
nib.Toggle(
"Enable Notifications",
is_on=settings.notifications,
on_change=lambda v: setattr(settings, "notifications", v),
),
],
),
),
],
)
app.menu = [
nib.MenuItem("Settings", action=app.settings.open, icon="gear", shortcut="cmd+,"),
nib.MenuDivider(),
nib.MenuItem("Quit", action=app.quit),
]
app.build(
nib.Text("Right-click for settings", padding=20)
)
nib.run(main)
Simple single-view settings (no tabs)¶
import nib
def main(app: nib.App):
app.title = "Simple App"
app.icon = nib.SFSymbol("circle")
app.width = 300
app.height = 100
app.settings = nib.SettingsPage(
content=nib.VStack(
controls=[
nib.Text("Preferences", font=nib.Font.HEADLINE),
nib.Toggle("Enable feature", is_on=True),
],
spacing=12,
padding=20,
),
width=400,
height=200,
)
app.build(
nib.VStack(
controls=[
nib.Text("Hello!", padding=10),
nib.Button("Open Settings", action=app.settings.open),
],
spacing=8,
padding=16,
)
)
nib.run(main)
Opening settings from a button¶
import nib
def main(app: nib.App):
app.title = "App"
app.icon = nib.SFSymbol("app")
app.width = 300
app.height = 150
app.settings = nib.SettingsPage(
tabs=[
nib.SettingsTab(
"Account",
icon="person.circle",
content=nib.VStack(
controls=[
nib.TextField(value="", placeholder="Username"),
nib.SecureField(placeholder="Password"),
],
spacing=10,
padding=20,
),
),
nib.SettingsTab(
"Advanced",
icon="wrench.and.screwdriver",
content=nib.VStack(
controls=[
nib.Toggle("Debug Mode", is_on=False),
nib.Toggle("Verbose Logging", is_on=False),
],
spacing=10,
padding=20,
),
),
],
)
app.build(
nib.VStack(
controls=[
nib.Text("Welcome", font=nib.Font.TITLE),
nib.Button(
content=nib.HStack(
controls=[
nib.SFSymbol("gear"),
nib.Text("Preferences"),
],
spacing=6,
),
action=app.settings.open,
),
],
spacing=12,
padding=20,
)
)
nib.run(main)
